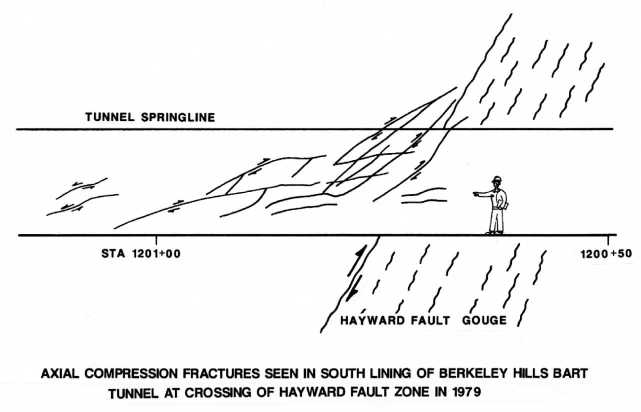

Figure 14. Fracture pattern in concrete lining of the south BART tunnel where it crosses the Hayward fault (as mapped in 1979). The low-angle fractures are suggestive of axial compression within the Berkeley Hills tectonic block (from Rogers, 1986).
